HUAWEI SmartAX MA5600T GPON OLT Product Positioning This topic describes the product positioning and network applications of the SmartAX MA5600T/MA5603T/MA5608T series devices. The MA5600T/MA5603T/MA5608T is a series of integrated fiber-copper access devices. They support ADSL2+, VDSL2, Vectoring, SHDSL, POTS, GPON, 10G GPON, and P2P access modes and provide Internet access, voice, and video services to subscribers. As a series of large-/medium-/small-capacity devices, they share the same software platform and service boards. Large-capacity device MA5600T Medium-capacity device MA5603T Small-capacity device MA5608T
The MA5608T is mainly used in optical fiber access, and its applications in copper line access are sold in only specific markets. If you have copper line access requirements, contact the local Huawei sales engineers. Application The MA5600T/MA5603T/MA5608T is a series of large-/medium-/small-capacity devices that support integrated fiber-copper access and access-aggregation integration. Figure 1 shows their application network. Figure 1 Application network

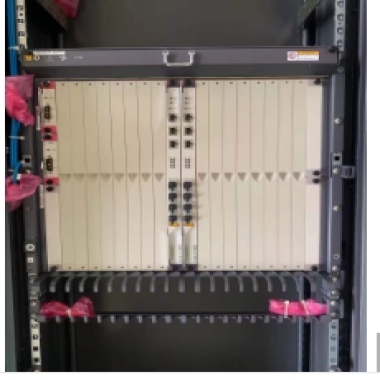

The MA5600T is an integrated fiber-copper access device, and can serve as a DSLAM, OLT, or aggregation OLT. The MA5600T, if serving as a large-capacity DSLAM, supports ADSL2+, VDSL2, Vectoring, SHDSL, and POTS access modes. The MA5600T, if serving as a large-capacity OLT, supports GPON, 10G GPON, and P2P access modes. The MA5600T, if serving as an aggregation OLT, supports FTTB/FTTC/DSLAM aggregation access, which simplifies the network architecture, reduces types and number of devices, and minimizes the CO equipment room space and energy consumption. Figure 2 shows the appearance of the MA5600T. Figure 2 Appearance of the MA5600T
The MA5603T is an integrated fiber-copper access device, and can serve as a DSLAM, OLT, or MDU. The MA5603T, if serving as an OLT, supports GPON, 10G GPON, and P2P access modes. It can be installed at a residential district or a street side, which reduces the usage of ODN backbone optical cables, lowers the ODN deployment cost and difficulty, and minimizes the CO equipment room space. The MA5603T, if serving as a DSLAM, supports ADSL2+, VDSL2, Vectoring, SHDSL, and POTS access modes. The MA5603T, if serving as an MDU, supports ADSL2+, VDSL2, Vectoring, SHDSL, and POTS access modes and transmit packets upstream to the OLT through a PON/GE/10 GE port. Figure 3 shows the appearance of the MA5603T. Figure 3 Appearance of the MA5603T configured with the xDSL boards
MA5608T The MA5608T is an integrated fiber-copper access device, and can serve as a mini-OLT or mini-DSLAM. The MA5608T, if serving as a mini-OLT, supports GPON, 10G GPON, and P2P access modes. It can be installed at a residential district or a street side, which reduces the usage of ODN backbone optical cables, lowers the ODN deployment cost and difficulty, and minimizes the CO equipment room space. The MA5608T, if serving as a mini-DSLAM, supports ADSL2+, VDSL2, SHDSL, and POTS access modes and provides Internet access, voice, and video services. Figure 4 shows the appearance of the MA5608T. Figure 4 Appearance of the MA5608T configured with the xPON boards
HetAN The MA5600T/MA5603T/MA5608T serves as the CO OLT and supports multiple network construction modes and diversified access media to provide access for home users, mobile users, and enterprise users. Such a heterogeneous access network (HetAN) wins popularity. Figure 1 shows the structure of the HetAN. Figure 1 HetAN
User access: provides access for home users, mobile users, and enterprise users. Network construction mode: supports FTTH, FTTB, FTTC, FTTW, F, and FTTD networks. Access media: supports copper, fiber, cable, and Wi-Fi access. All in One The integrated fiber-copper access platform and the access-aggregation integration capability of the MA5600T/MA5603T/MA5608T effectively ensure the smooth evolution of the access network. The MA5600T/MA5603T/MA5608T supports integrated fiber-copper access and access-aggregation integration, as shown in Figure 1. Figure 1 MA5600T/MA5603T/MA5608T of the all in one platform
The MA5600T/MA5603T/MA5608T enables optical fibers and copper lines to be integrated in one platform, which ensures that the access network can smoothly evolve from copper line access to optical fiber access. Optical fiber access: The MA5600T/MA5603T/MA5608T supports GPON, 10G GPON, and P2P optical fiber access, satisfying the requirements of the FTTH, FTTB, FTTC, F, FTTM, and FTTW scenarios. Copper line access: The MA5600T/MA5603T/MA5608T supports ADSL2+ (compatible with ADSL), VDSL2 (compatible with ADSL2+), SHDSL, and POTS voice services. The MA5600T/MA5603T/MA5608T supports multiple copper line access modes and makes full use of existing copper line resources to provide users with rich and flexible network services. In addition, the MA5600T/MA5603T/MA5608T can function as a DLSAM to be used in copper access only, or as an MSAN to be used in integrated fiber-copper access. 华为光传输设备SmartAX MA5600T MA5683T光接入设备不间电源20KVA机架式1户外通信电源机柜，室外一体化电池仓，ETC机柜，外一体化电池仓机柜高速ETC机柜，前后开门机柜，室外通信机柜，铁塔基站机柜2室外通信电源机柜，室外电池仓，3室外一体化机柜，户外通信机柜 4室外空调机柜，空调机柜，户外机柜，户外设备机柜，5G户外一体化机柜，室外电源机柜，室外设备机柜，室外综合机柜，户外防水机柜，室外恒温机柜，室外网络设备机柜，室外交换机机柜，直流空调机柜，楼顶机柜，落地机柜，交流空调机柜，嵌入式电源 锂电池 直流电源 交流电源 UPS 嵌入式通信电源系统 户外电源系统 组合式电源系统 挂墙式电源系统 直流远供电源系统 直流通信电源系统高频通信电源模块 整流模块 整流器 监控单元 监视器室外柜 网络机柜 锂电池 UPS 高频开关电源 通信电源 嵌入式电源 网络机柜 室内机柜 锂电www.zjjjdy.com.cn www.hwtxdy.net |
NOTE:
MA5600T
MA5603T
Fiber-Copper Integration
