　　HUAWEI SmartAX MA5600T GPON OLT

　　Product Positioning

　　This topic describes the product positioning and network applications of the SmartAX MA5600T/MA5603T/MA5608T series devices.

　　The MA5600T/MA5603T/MA5608T is a series of integrated fiber-copper access devices. They support ADSL2+, VDSL2, Vectoring, SHDSL, POTS, GPON, 10G GPON, and P2P access modes and provide Internet access, voice, and video services to subscribers. As a series of large-/medium-/small-capacity devices, they share the same software platform and service boards.

　　Large-capacity device MA5600T

　　Medium-capacity device MA5603T

　　Small-capacity device MA5608T

 NOTE:

　　The MA5608T is mainly used in optical fiber access, and its applications in copper line access are sold in only specific markets. If you have copper line access requirements, contact the local Huawei sales engineers.

　　Application

　　The MA5600T/MA5603T/MA5608T is a series of large-/medium-/small-capacity devices that support integrated fiber-copper access and access-aggregation integration. Figure 1 shows their application network.

　　Figure 1 Application network

MA5600T

　　The MA5600T is an integrated fiber-copper access device, and can serve as a DSLAM, OLT, or aggregation OLT.

　　The MA5600T, if serving as a large-capacity DSLAM, supports ADSL2+, VDSL2, Vectoring, SHDSL, and POTS access modes.

　　The MA5600T, if serving as a large-capacity OLT, supports GPON, 10G GPON, and P2P access modes.

　　The MA5600T, if serving as an aggregation OLT, supports FTTB/FTTC/DSLAM aggregation access, which simplifies the network architecture, reduces types and number of devices, and minimizes the CO equipment room space and energy consumption.

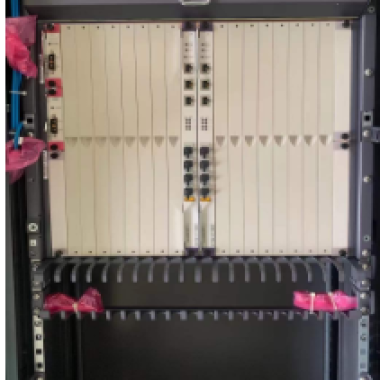

　　Figure 2 shows the appearance of the MA5600T.

　　Figure 2 Appearance of the MA5600T

MA5603T

　　The MA5603T is an integrated fiber-copper access device, and can serve as a DSLAM, OLT, or MDU.

　　The MA5603T, if serving as an OLT, supports GPON, 10G GPON, and P2P access modes. It can be installed at a residential district or a street side, which reduces the usage of ODN backbone optical cables, lowers the ODN deployment cost and difficulty, and minimizes the CO equipment room space.

　　The MA5603T, if serving as a DSLAM, supports ADSL2+, VDSL2, Vectoring, SHDSL, and POTS access modes.

　　The MA5603T, if serving as an MDU, supports ADSL2+, VDSL2, Vectoring, SHDSL, and POTS access modes and transmit packets upstream to the OLT through a PON/GE/10 GE port.

　　Figure 3 shows the appearance of the MA5603T.

　　Figure 3 Appearance of the MA5603T configured with the xDSL boards

　　MA5608T
